知能式スーパー電圧安定装置（PSO)
Intelligent logic assemble function programming, it is suitable for all kinds of load and premises. The product lines have complete series and are all CE certified. Also, its with compact size, high efficiency, and easy to operation. Electrical and servo module mass producing, with several patents and anti-mistake circuit design, the producing procedure meet international standard, with high reliability quality and long MTBF.
|
Logic Assemble Function Programming |
|
SOVP Device |
|
Self-Detecting Function |
 |
|
 |
|
 |
|

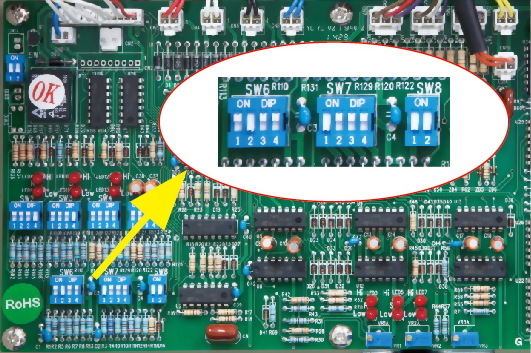

Adopt with multilayer and big range DIP SW logic assemble design, include high/low voltage, delay, quick regulating and O/P accuracy setting. All setting can operate and select easier, user can pre-set the most appropriate adjustment in accordance with the load requirement |
|
Whether it is switched on or recover from power outage, the Start Over Voltage Protection will always re-start from low voltage, won’t have high voltage output
|
|

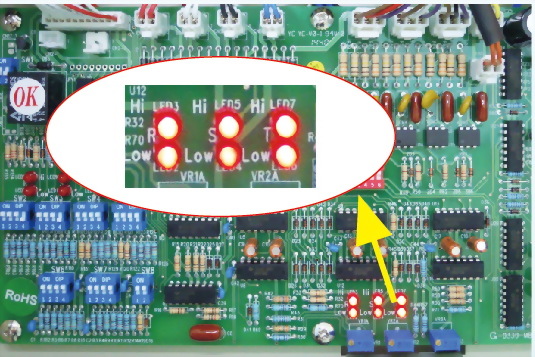

Each time during the unit turn on the AVR, fast detect utility and itself whether under protect setting quickly, then supply precise voltage to the equipment
|
|
|
|
|
|
|
|
|
|
|
|
|
|

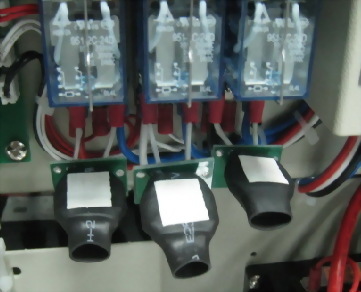

With Surge Protection |
|
Separated Regulation |
|
I/P & O/P Wires Protection |
 |
|
 |
|
 |
|
With lightning and surge protect function (only few models have) |
|
Three phase separate regulators design |
|

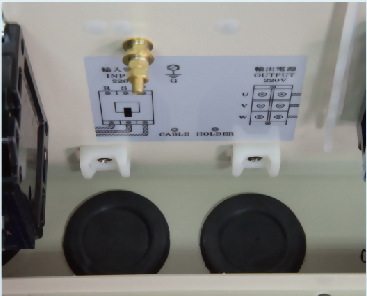

Wiring fixed, I/P, O/P wires well sealed, stable & safety |
|
|
|
|
|
|
|
|
|
|
|
|
|

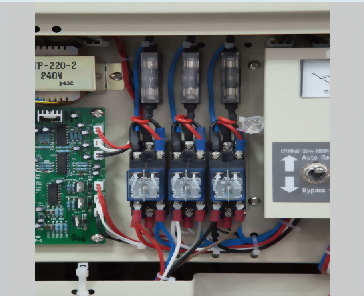

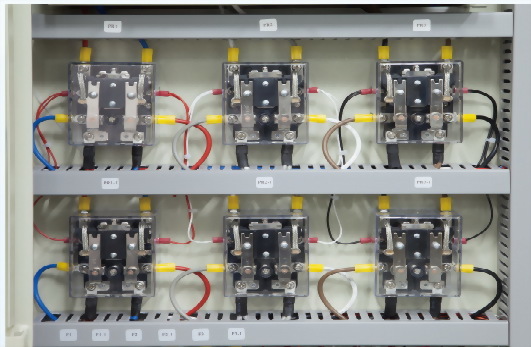

Bypass & Indication |
|
H Class Protection |
|
|
 |
|
 |
|
|
|
With three phase voltage indicator and bypass device |
|

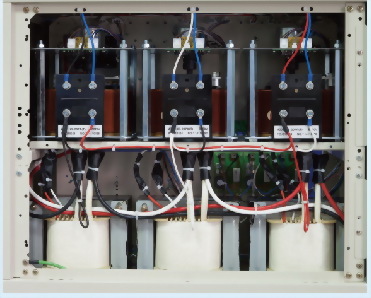

With Class H insulation materials transformer |
|
|
|
Model No. (PSO-) |
310 X/N/Y |
315 X/N/Y |
320 X/N/Y |
330 X/N/Y |
345 X/N/Y |
360 X/N/Y |
375 X/N/Y |
3100 X/N/Y |
3120 X/N/Y |
3150 X/N |
3180 X/N |
3200 X/N |
|
|
Capacity (KVA) |
10 |
15 |
20 |
30 |
45 |
60 |
75 |
100 |
120 |
150 |
180 |
200 |
|
|
Voltage |
X2 : 3Ø3W 220V series N2 : 3Ø4W 220/380V series (Indicate phase voltage)
N3 : 3Ø4W 220/380V series (Indicate line voltage) Y : Input 3Ø3W 380V, Output 3Ø3W 220V (with auto type transformer)
Y0 : Y type with special specification |
||||||||||||
|
Input Range |
Nominal Voltage: 15% (±10%,20%,±25% can be customized) Frequency: 50/60Hz±5% |
||||||||||||
|
Output Accuracy |
≦1% |
||||||||||||
|
Power Factor |
0.95~1 |
||||||||||||
|
Efficiency |
≧98% |
||||||||||||
|
Response Time |
<0.1 Second |
||||||||||||
|
Waveform Distortion |
No distortion |
||||||||||||
|
Protection |
High Voltage |
Standard Feature (can be Various / Multi / Big range pre-set and LED displayed) |
|||||||||||
|
Low Voltage |
Standard Feature (can be Various / Multi / Big range pre-set and LED displayed) |
||||||||||||
|
Phase Failure |
Standard Feature (can be Various / Multi / Big range pre-set and LED displayed) |
||||||||||||
|
Bypass |
Standard Feature (with High / Low Voltage, Phase Failure, Instant Black-Out Protection at work) |
||||||||||||
|
Indicators |
Power |
Standard Feature |
|||||||||||
|
Voltage |
Standard Feature |
||||||||||||
|
Abnormal |
Standard Feature |
||||||||||||
|
Overload |
150% for 10 seconds |
||||||||||||
|
Environment |
Temperature: 0°C~45°C Humidity: 0%~95% RH (Non-Condensing) |
||||||||||||
 Intelligently logic regulation
|
|
Self-detecting function
|
|
Powerful overload 150% ability
|
|
With bypass device and protect function
|
|
Big range high/low voltage protect device
|
|
Phase failure, instant black-out, short circuit protection
|
|
Start over voltage protection
|
|
Independent regulation and protection design
|
|
Full series with the same control system and multi anti-mistake circuit design
|
|
Front panel with LED indicator displayed AVR regulating status
|
|

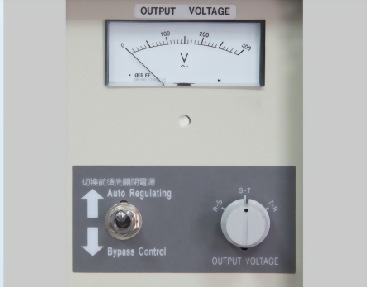

With O/P voltmeter to monitor O/P voltage
|
|
With dip sw. and easy for setting
|
|
Separated voltage regulation design, 3 phase unbalance 100%
|
|
Taiwan patent no. 160215, 162577
|
|
China patent no. 125595, 390066
|
|
Double overload and short circuit protection
|
 |
 |
 |
|
Base Station |
Outdoor Electric Equipment |
Communicating Equipment |
 |
 |
 |
|
Bridge |
Resort |
Park Electric Equipment |
