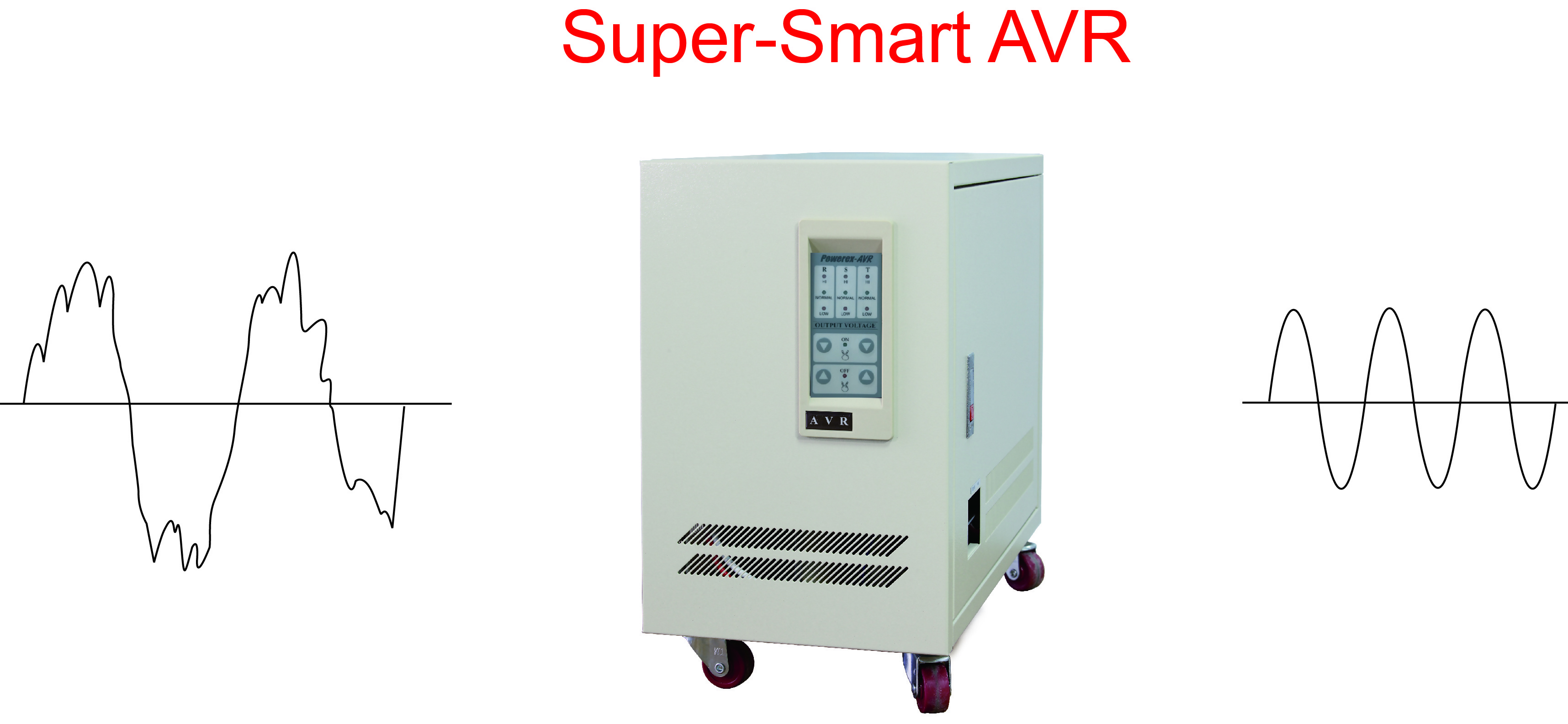

スーパースマートAVR /スタビライザー(PS)
Intelligent logic assemble function programming, it is suitable for all kinds of load and premises. The product lines have complete series and are all CE certified. Also, its with compact size, high efficiency, and easy to operation. Electrical and servo module mass producing, with several patents and anti-mistake circuit design, the producing procedure meet international standard, with high reliability quality and long MTBF.

Logic Assemble Function |
SOVP Device |
Self-Detecting Function |
![]() |
![]() |
![]() |

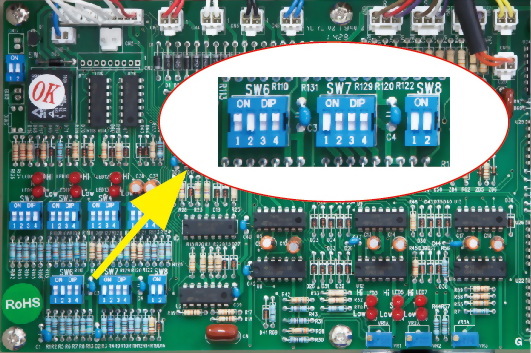

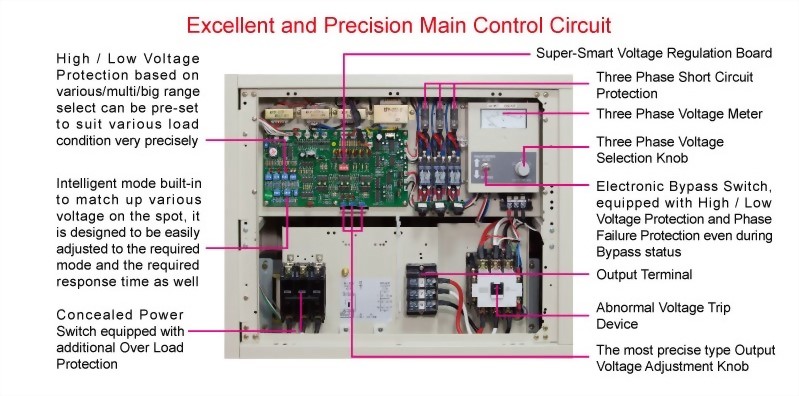

Adopt with multilayer and big range DIP SW logic assemble design, include high/low voltage, delay, quick regulating and O/P accuracy setting. All setting can operate and select easier,user can pre-set the most appropriate adjustment in accordance with the load requirement |
Whether it is switched on or recover from power outage, he Start Over Voltage Protection will always re-start from low voltage, won’t (have high voltage output) |
Each time during the unit turn on the AVR, fast detect utility and itself whether under protect setting quickly, then supply precisevoltage to the equipment |
With

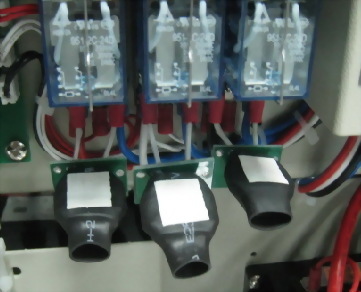

Surge Protection |
Separated
Regulation |
I/P
& O/P Wires Protection |
![]() |
![]() |
![]() |
With lightning and surge protect function (only few models have) |

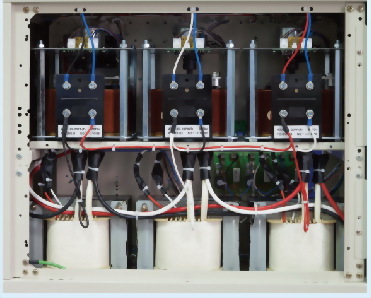

Three phase separate regulators design
|

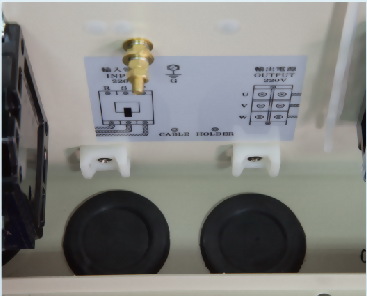

Wiring fixed, I/P, O/P wires well sealed, stable & safety |
Bypass & Indication | H Class Protection |
|
![]() |
![]() |
|

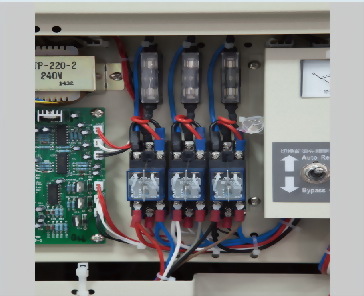

With three phase voltage indicator and bypass device |
With Class H insulation materials transformer |
|

Intelligently logic regulation
Self-detecting function
Powerful overload 150% ability
With bypass device and protect function
Big range high/low voltage protect device
Phase failure, instant black-out, short circuit protection
Start over voltage protection
Independent regulation and protection design
Full series with the same control system and multi
anti-mistake circuit design

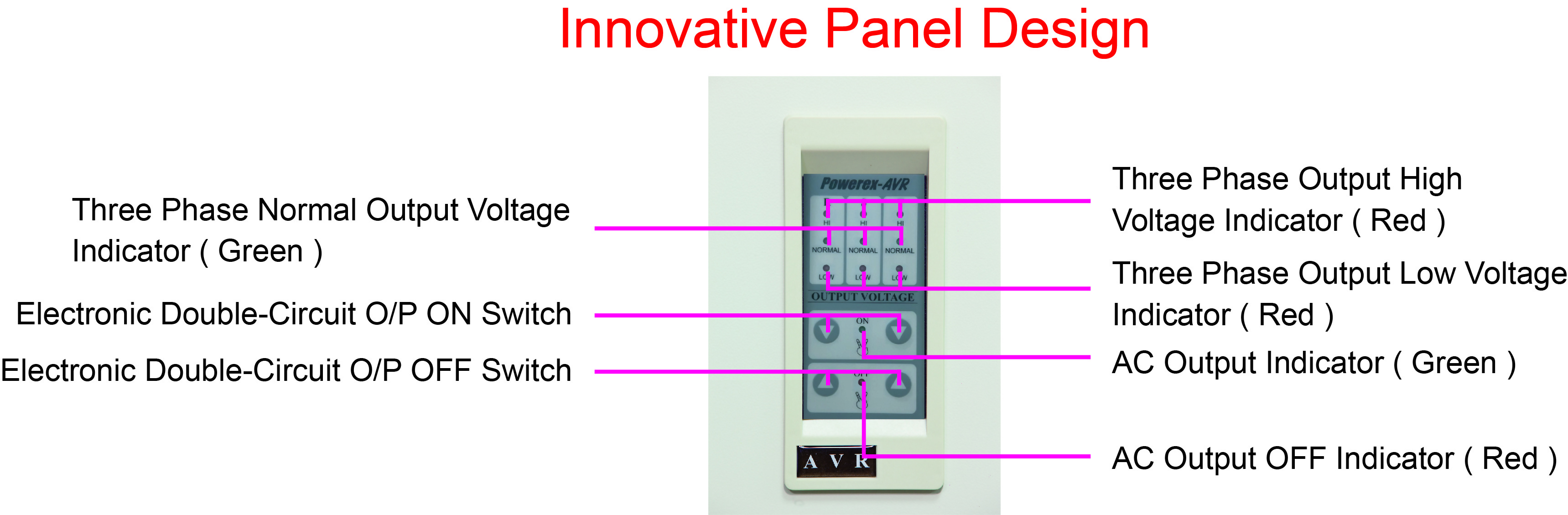

Front panel with LED indicator displayed AVR regulating
status
With O/P voltmeter to monitor O/P voltage
With dip sw. and easy for setting
Electronics double circuitry switch design
Separated voltage regulation design, 3 phase unbalance
100%
Taiwan patent no. 160215, 162577
China patent no. 125595, 390066

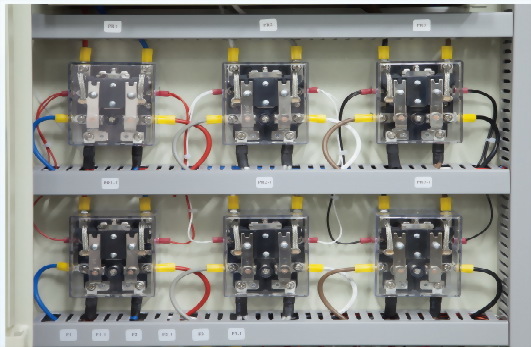

Double overload and short
circuit protection
![]() |
The powerful PS series can completely adjust the regulating speed and regulation |
range in accordance with power’s variation and the load character on the spot by the logic |
pulse circuit control to gain the most satisfactory power regulation |
|
![]() |
Whenever AC power encounters three phase unbalanced, non-linear power or heavy |
load, the Separate Regulators will still maintain its accurate output |
|
![]() |
To renovate the traditional meter reading, this Super-Smart AVR provides user a |
very clear reading only by checking the indicators’ colors to realize it is normal or abnormal. |
The green indicator stands for normal, red indicator shows abnormal |
|
![]() |
All the technical design inside the Super-Smart AVR is of ModuleDesignedand separately |
assembled, components used on PCB are very stringently quality controlled and tested by |
computerized ICT satisfactory quality reliability |
|
![]() |

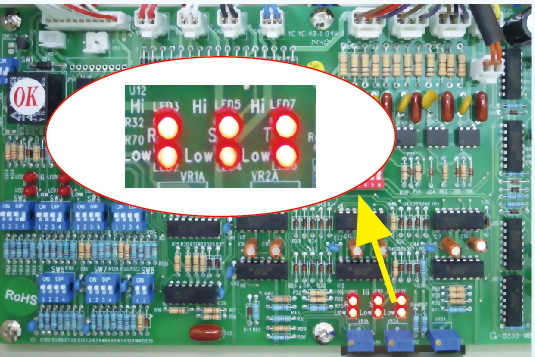

The Self-Detect result is displayed by light indicators providing an immediate, |
exact malfunction information to users making maintenavce more easy and efficient |
|
![]() |
The Super-Smart AVR is specially designed to withstand 150% of its nominal load |
and no voltage decrease will happen |
|
![]() |
Whether it is switch on or recovers from power outage, the Start Over Voltage |
Protection will always start from low voltage to protect the load side equipment |
|
![]() |
To prevent from inappropriate operation or touch by which causing AC |
output switch ON or AC output switch OFF, Super-Smart AVR has a very |
delicate Electronic Double-Circuit Control design, one must simultaneously push two |
ONs or two OFFs to start or shut down the Super-Smart AVR |
|
![]() |
Whatever the load side it may be like, for instance, heavy load |
equipment or precise equipment, even there is a very massive power variation, the Super-Smart |
AVR has a very special feature design of Various/Multi/Big range Select to pre-set the most appropriate |
and precise adjustment in accordance with the load requirement |
|
![]() |
If there is any failure within three phase power, the Super-Smart AVR will immediately |
complete the detect and have it displayed and trip off to protect the load side equipment |
|
![]() |
This Instant Trip Design will always trip before AC recovers from an instant black-out, it |
features a re-set function making sure a stable power is in operation again while AC power gets |
back to normal. The purpose of this is to protect the load equipment from damaging by a frequently |
happened abnormal high voltage |
|
![]() |
The AVR can still provide High/Low Voltage Protection, Phase Failure Protection...and all the |
other featured Protection when it is in status of Bypass under maintenance or repairing |
![]() |
![]() |
![]() |
PCB

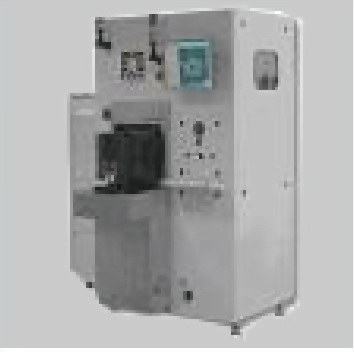

Drilling Machine |

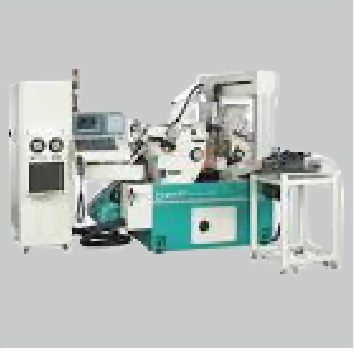

Integrated Processing Machine |
SMT |
![]() |
![]() |
![]() |
EDM |

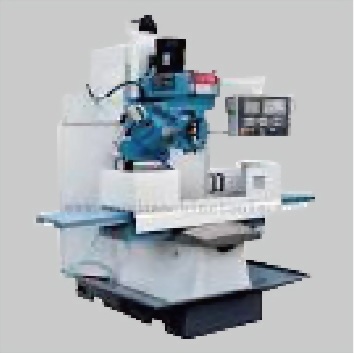

Milling
Machine |

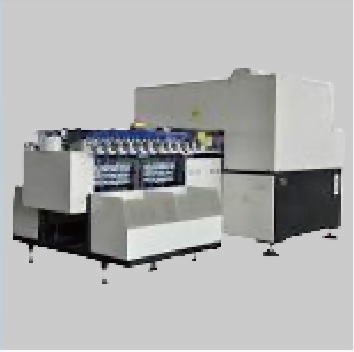

AI Component Inserting Machine |
![]() |
![]() |
![]() |
Grinding Machine |

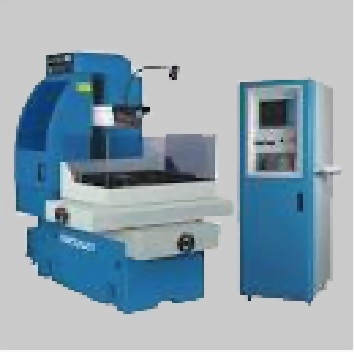

WEDM |
Production Process Equipment |
![]() |
![]() |
![]() |
SMT |
Laboratory |
Medical Monitoring Equipment |
