知能式電圧安定装置(PS-B)
Specially for transformer & voltage regulation equipment
Specialized design of voltage regulator and voltage transformation, changing from 3 phase 380V to 3 phase 220V at capacity between 12 and 15 KVA. The equipment is most suitable for matching with precision machine for export. Control and mechanism of PS series Intelligent model has the function of voltage transformation, voltage regulation, warning and protection.
Specialized design of voltage regulator and voltage transformation, changing from 3 phase 380V to 3 phase 220V at capacity between 12 and 15 KVA. The equipment is most suitable for matching with precision machine for export. Control and mechanism of PS series Intelligent model has the function of voltage transformation, voltage regulation, warning and protection.

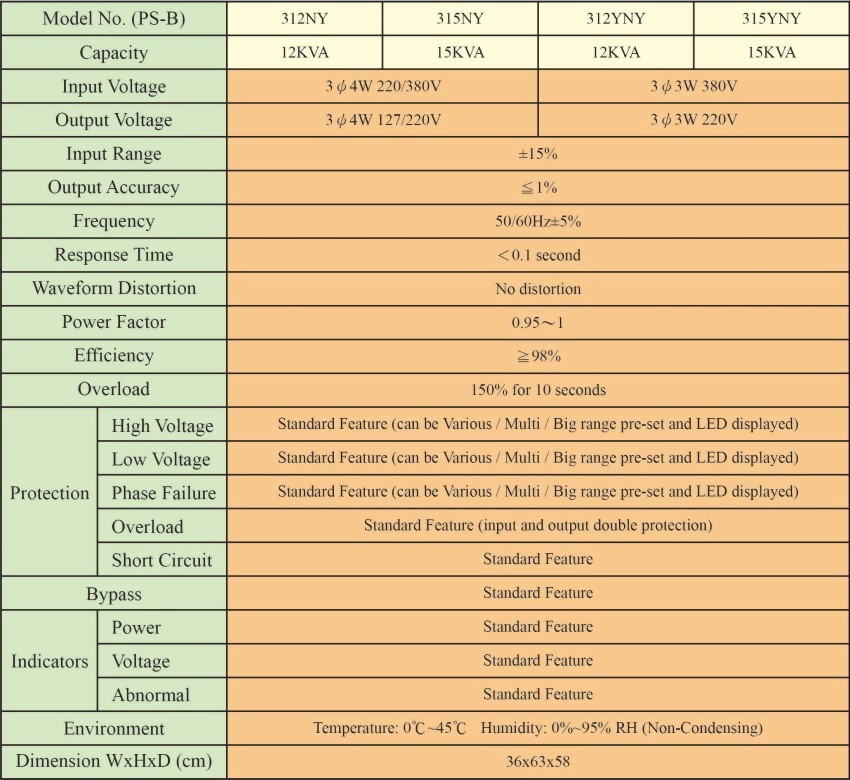

モデル :
PS-B series
Multi-Function Main Control PCB |
|
Solid Input/ Output Protection |
|
Double Overload Protection Device |
![]() |
|
![]() |
|
![]() |
Including 3 phase time-series inching, self detection, multiple layer big range setting and high / low voltage protection |
|
Output and input wires are wired from middle and up to left and right and fixed with cable fastener to form firm wiring |
|
In addition to NFB, there is device preventing output overload and incorporated with bypass protection function |
|
|
|
|
|
|
|
|
|
|
Specific Lamp Indicator, |
|
Top Grade NFB |
|
|
![]() |
|
![]() |
|
|
Individual indicator for each of 3 phase and high / low voltage and normal indicators, including fools proof double circuit switch forming a most humanized design |
|
Incorporated with top grade NF type High-Voltage resistance No-Fuse Breaker with precise overload tripping function |
|
|

Start over voltage protection
Big range high/low voltage protect device
Humanized anti-mistake circuit design
Intelligent logic voltage regulation design
Innovative panel design
Electronic double-circuit On/Off design
Dip-switch protection setting
Double over-current
protection design
Separated voltage
regulation design
Self-detecting function
Instant tripping
protection device
Module design
Phase loss protection
Short circuit protection
![]() |
![]() |
![]() |
EDM |
Grinding Machine |
WEDM |
![]() |
![]() |
![]() |
Integrated Processing Machine |
Milling Machine |
AI Component Inserting Machine |
